REHAU Euro-Design 60
A smart solution for your home!
The REHAU Euro-Design 60 profile system is a reliable model of the highest quality windows from the manufacturer, offering more warmth, comfort, and light every day!
This profile has a three-chamber structure with a 60 mm installation depth. According to the latest requirements for thermal insulation of residential premises, such characteristics are recommended for use in Ukraine’s climatic zones. Additionally, this makes it an economically sound choice for any construction project due to the optimal price-quality ratio.
Application

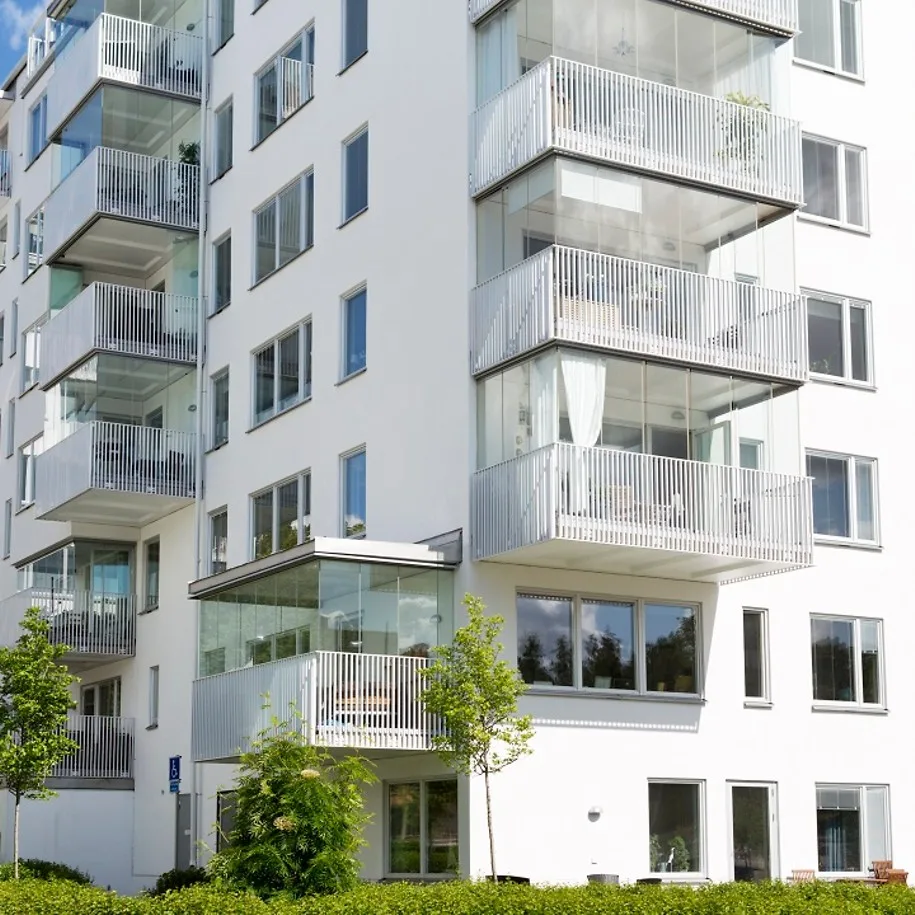

- Windows with a three-chamber profile system are used for glazing balcony units, balconies, and loggias.
- They are optimal for glazing stair landings in apartment buildings.
- They are ideal for houses with central heating systems that do not have exclusive thermal and sound insulation requirements.
The REHAU Euro-Design 60 system integrates the REHAU Ecosol-Design 60 system, which comes with the standard REHAU protective film.
Technical characteristics of the model |
|
|---|---|
| Constructive depth | 60 mm |
| Number of cameras | 3 cameras |
| Maximum glazing unit thickness | up to 33 mm |
| Height of the profile package (frame + sash) | 117 mm |
| Heat transfer coefficient | Uf = 1,6 Вт/м²К |
| Heat transfer resistance coefficient | Rf = 0,65 м²К/Вт |
| Sound insulation | Rw,P = 41 dB |
| Hacking security | to class RC2 (ENV 1627) |
| Air permeability | class 4 according to EN 12207 |
| Water resistance | to class 9A according to EN 12208 |
| Sealing of the vestibule | EPDM / 2 circuits |
| Profile color | white, colored, “wood” |
